About spiral juice extractor

It is understandable for people to pursue of high-quality life with the development of science and technology and the improvement of people’s living conditions. More and more people begin to drink fruit juice which has higher nutritional value. So fruit juice processing industry becomes popular. In this case, spiral juice extractor is becoming very popular for making nutritional fruit juice with the characters of convenient to operate and easy to clean.

About spiral juice extractor

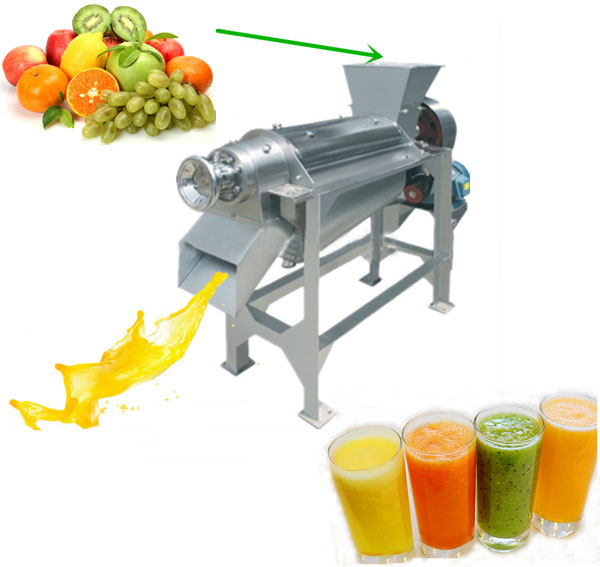

fruit juice spiral juice extractor
Generally, spiral juice extractor is not only the common food mechanical equipment, but also supplies the requirements of juicing for some enterprises and catering industry in an effective and sanitary way. It not only can as a single machine to process fresh juice but also can be combined with production line. Spiral juice extractor is used to extract fantastic and fresh juice not only from fruits such as apple, pear, peach, orange, pineapple and grape etc. but also from vegetables like carrot, tomato, ginger and celery etc.

Components and working principle of spiral juice extractor

Spiral juice extractor is composed of several important parts as the other machines. The main components of spiral juice extractor are shown in the following figure:
main components of spiral juice extractor

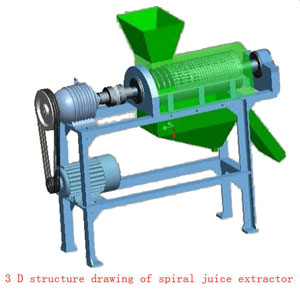

3 d structure of spiral juice extractor
From the picture, the main components of spiral juice extractor consist of motor, triangular belt, feed hopper, spiral, filter screen, juice container, 3 D structure drawing of spiral juice extractor reducer and coupling etc. and the working principle is: through the triangular belt, the motor drives the reducer transmission, then put the raw material into the feed hopper and they are propelled by the boosting of the spiral, then the pressure makes the raw material to be extracted into juice, finally, the juice container will catch the finished juice, simultaneously, the residues are discharged out of the circular gap formed by the spiral and pressure adjusting head.

Issues should be paid attention to about spiral juice extractor

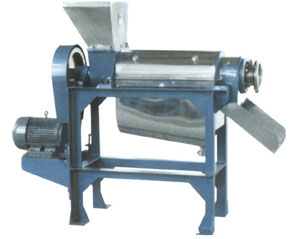

TICO spiral juice extractor machine
details of spiral juice extractor
Generally speaking, the specification of spiral juice extractor is different from each other because of different manufacturers and suppliers. But there is one same point that most of the materials which can be touched with fruit raw materials of spiral juice extractor adopt the high quality stainless steel which conforms to the food sanitation. And most of the manufacturers or suppliers use the wooden case as the packing form.
The size of the circular gap should be the proper in accordance with the special requirements. This is because when rotate the hand wheel bearing block with hands clockwise, the pressure regulating head towards left and the circular gap reduces; or else, the circular gap will enlarge. The change of the circular gap can affect the resistance of expelling residues, further on affecting the extracting rate of spiral juice extractor.
When put the raw material into the feeding hopper, they must be put evenly, and the raw material must be pretreated. And make sure there are not any dopants.
Each time after the spiral juice extractor works, it should be cleaned overall. And the filter should be cleaned with water and brush after every shift of work, when there is much fiber refined in the juice, cleaning is especially necessary.

How to choose proper spiral juice extractor?

Refer to choosing proper spiral extractor, the most important thing is to choose the one which is suitable for your requirements, then pay attention to the juicing rate, but fundamentally speaking, spiral juice extractor is easy to operate and clean, so when you choose suitable spiral juice extractor just consider your production capacity and the power of motor. As stated, suitable is the best. And with the wide use of spiral juice extractor which has the outstanding advantages of high juicing rate and widely application in the fruit juice processing line, easy to operate, it bound to become the most popular equipment in the juice processing industry. Our company exactly offers the spiral juice extractor for the customers. you can just buy the single machine or the juice processing line as per your requirements. We sincerely hope to have business relations with you!
